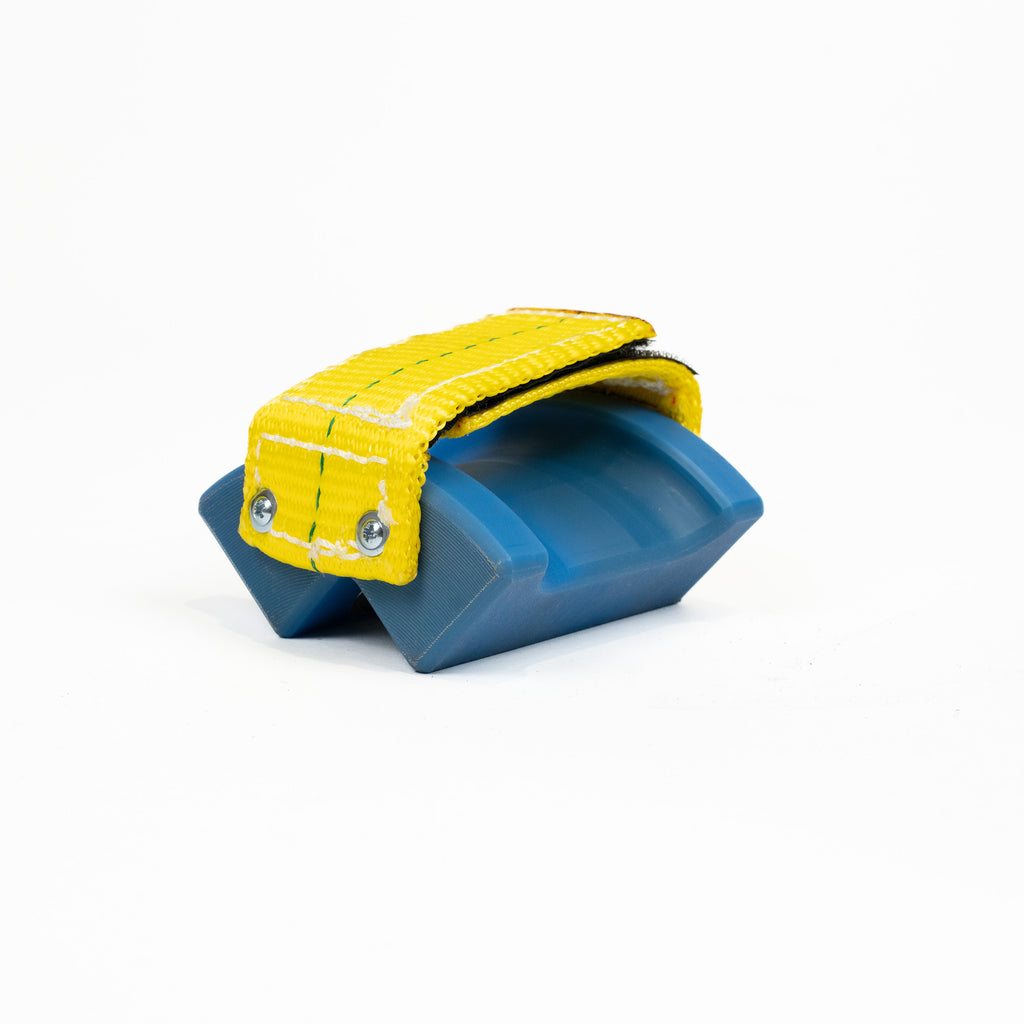

LiftGuard Corner Protector
LiftGuard Corner Protector
LiftGuard Corner Protector
LiftGuard Corner Protector
LiftGuard Corner Protector
LiftGuard Corner Protector
LiftGuard Corner Protector
LiftGuard Corner Protector
  • SKU: LG-4-3-90
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

LiftGuard Corner Protector

$80.00

Accepted Forms of Payment:

Accepted Forms of Payment

Need Support?

Click here or call DICA @ 866-497-0951 for any questions.

    DICA LiftGuard Medium Duty Magnetic Sling Protectors



    • Designed for use with all synthetic sling types, and can be used with wire rope and chain slings when lighter loads or low frequency use is planned.
    • LiftGuard Sling Protectors prevent damage to synthetic slings, wire rope, chain slings and loads from sling contact with load edges, corners, abrasive surfaces, and protrusions.
    • Velcro straps help ensure DICA Sling Protectors stay attached to your rigging and make carrying and placement easier for crews.
    • All sling types can be damaged when lifting a load if they are not properly protected.
    • Cut and damaged slings are the leading cause of most rigging related accidents. LiftGuard Sling Protectors help reduce your liability by eliminating the use of makeshift load or sling protection.



    Medium Duty



    MODEL OVERALL LENGTH (inches) MAX SLING WIDTH (inches) 1" SLING CAPACITY (lbs) MAX CAPACITY BASED ON MAX SLING WIDTH (lbs) WEIGHT (lbs)
    LG-6-3-90 6 4 12,500 50,000 1.25
    LG-9-3-90 9 7 12,500 87,500 1.75
    LG-12-3-90 12 10 12,500 125,000 2.00
    LG-18-3-90 18 16 12,500 200,000 3.00

    Overall Length: Equals to the total end-to-end length of a sling protector.

    Safe Operating Zone: The usable area between the raised shoulders of the sling protector.

    Width at Load: Sling width under load.

    • Sling Total Contact Width: Round synthetic slings compress and flatten as the load is picked. Select your sling protector based on the sling width under load.
    • Caution – If your sling width under load is wider than the safe operating zone, the sling will point load.

    1" Sling Capacity: The maximum capacity per linear inch of sling contact, assuming 100% contact on both the vertical and horizontal load surfaces.

    Maximum Capacity: The total capacity of the individual sling protector, assuming the sling contact width does not exceed the safe operating area and 100% contact is maintained on both surfaces.




    Heavy Duty



    MODEL OVERALL LENGTH (inches) MAX SLING WIDTH (inches) 1" SLING CAPACITY (lbs) MAX CAPACITY BASED ON MAX SLING WIDTH (lbs) WEIGHT (lbs)
    LG-6-3-270 HD 6 4 12,500 50,000 5
    LG-9-3-270 HD 9 7 12,500 87,500 7
    LG-12-3-270 HD 12 10 12,500 125,000 9
    LG-18-3-270 HD 18 16 12,500 200,000 13

    Overall Length: Equals to the total end-to-end length of a sling protector.

    Safe Operating Zone: The usable area between the raised shoulders of the sling protector.

    Width at Load: Sling width under load.

    • Sling Total Contact Width: Round synthetic slings compress and flatten as the load is picked. Select your sling protector based on the sling width under load.
    • Caution – If your sling width under load is wider than the safe operating zone, the sling will point load.

    1" Sling Capacity: The maximum capacity per linear inch of sling contact, assuming 100% contact on both the vertical and horizontal load surfaces.

    Maximum Capacity: The total capacity of the individual sling protector, assuming the sling contact width does not exceed the safe operating area and 100% contact is maintained on both surfaces.


    Details



    • Stated capacities are based on full contact of the sling protectors horizontal and vertical surfaces and the load.
    • If full contact is not possible, the unit must be de-rated. Contact your rigging supplier or DICA to calculate the capacity for specific lifts.
    • Except for Groove units, when full contact exists, calculate the lift capacity by multiplying the sling contact width x 12,500 LBS.
    • Capacity:
      • Synthetic Slings: The working load limit is 12,500 LBS. per inch of synthetic sling width contact.
      • Wire Rope and Chain Slings: The working load limit (WLL) is 12,500 psi.
    • Magnetic: No tools are needed for installation or removal since the magnets allow for quick and easy attachment and removal. The magnets in all LiftGuard products are slightly recessed.  This slight recess ensures a magnetic connection without direct contact that could scratch painted surfaces.
    • Wire Rope Slings – D/d ratios. Always consult your wire rope D/d guidelines. DICA LiftGuard Sling Protector “D” = 5.



    Warning



    • Never overload the sling protectors.
    • Always calculate the protector capacity based on the type of protector, the type of sling, and the contact area of the sling on the protector.
    • Slings should never be in contact with the rounded surface shoulder of the sling protectors.  Slings must only be in contact with the flat surface of the sling protectors.
    • Ensure edge protectors are clean and smooth before use.
    • DO NOT use LiftGuard edge protectors that are bowed or discolored. These are signs of overloading.
